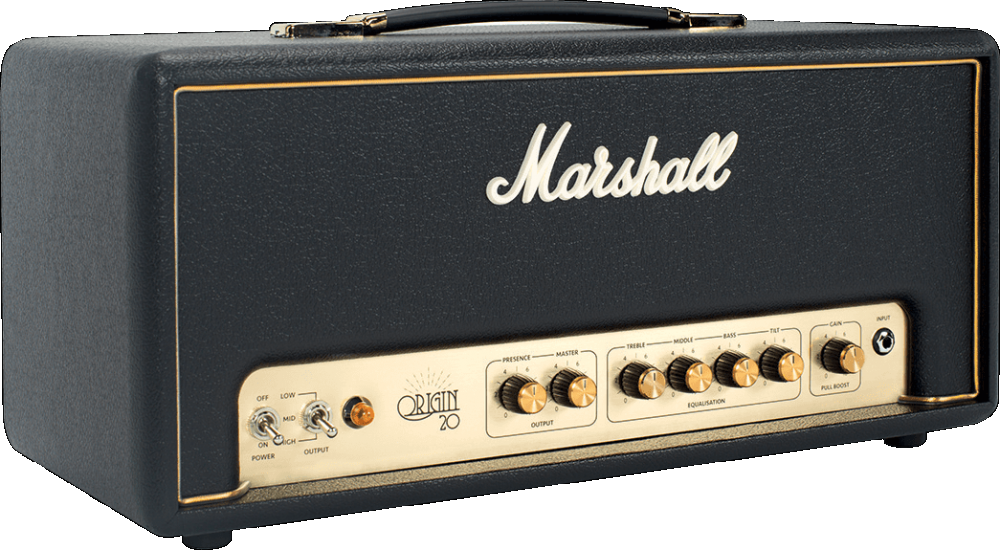

Express your personality with this 20W head. The Origin20HTM provides a classic all-valve, rich and harmonic tone. With sleek styling and modern features this amp is ideal for playing in different environments from bedroom to rehearsal studios and small venues. There is a 2-way footswitch available so you can control the gain boost feature and turn the FX loop on and off.
ADD A LITTLE BOOST
The footswitchable gain boost feature allows you to develop your sound by adding an extra level of gain to deliver crunch to your tone.
YOU HAVE THE POWER
To suit your playing environment, from the bedroom to the studio we have introduced new power reducing technology, PowerstemTM, allows you to have high, medium or low power modes.
TILT YOUR SOUND
With one channel, this amp still offers a variety of tones. By using the tilt control you can vary your sound from normal to high treble to access the one you prefer.
CONTROL YOUR TONE
Increasing the master volume can give you that classic overdrive sound and using the presence control you can increase the high frequency.
Output wattage: High power 20W, mid power approx 3W and low power approx 0.5W

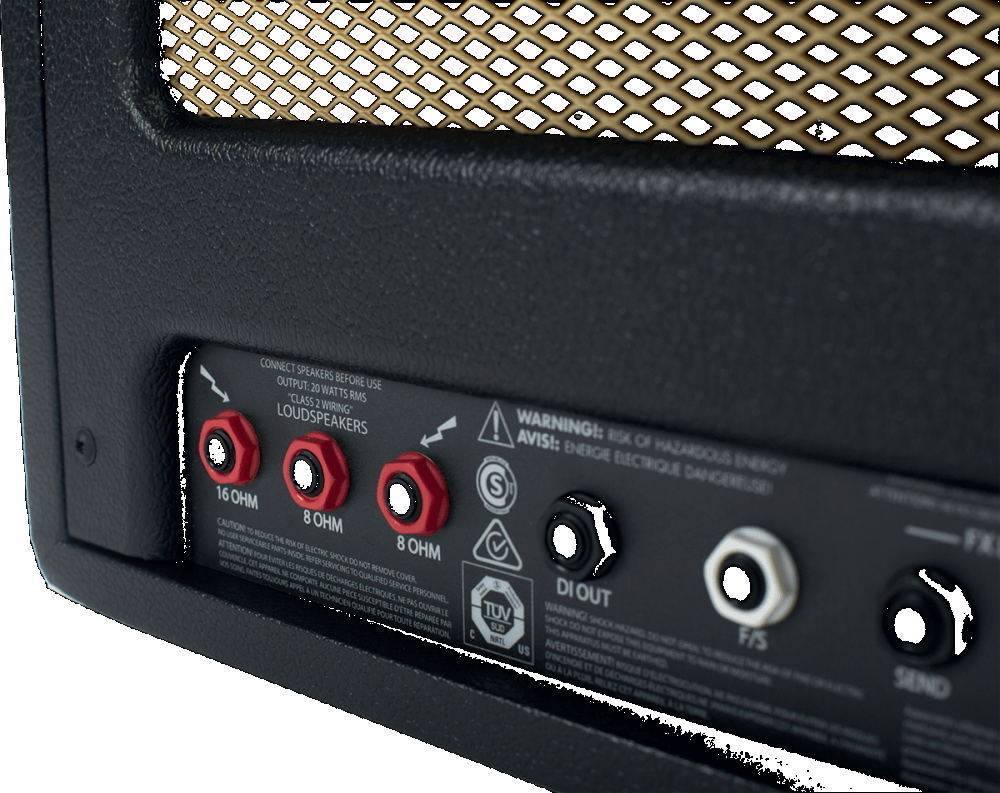

Outputs: Speaker outputs: 3 x 1/4" jack sockets (16Ω load / 8Ω load), DI out (1/4" jack)
Inputs: 1 x 1/4" jack instrument input, footswitch
Controls: Gain, boost, tilt, bass, middle, treble, master, presence, powerstem
Effects loop: Yes, Series, Send/Return
Preamp valves: 3 x ECC83
Power amp valves: 2 x EL34
Speaker model: Custom speakers (100W 4Ω)
Cable: Power cable included
Footswitch: PEDL-90016 included
Weight: 9,4 kg
Width: 520 mm
Height: 225 mm
Depth: 220 mm
