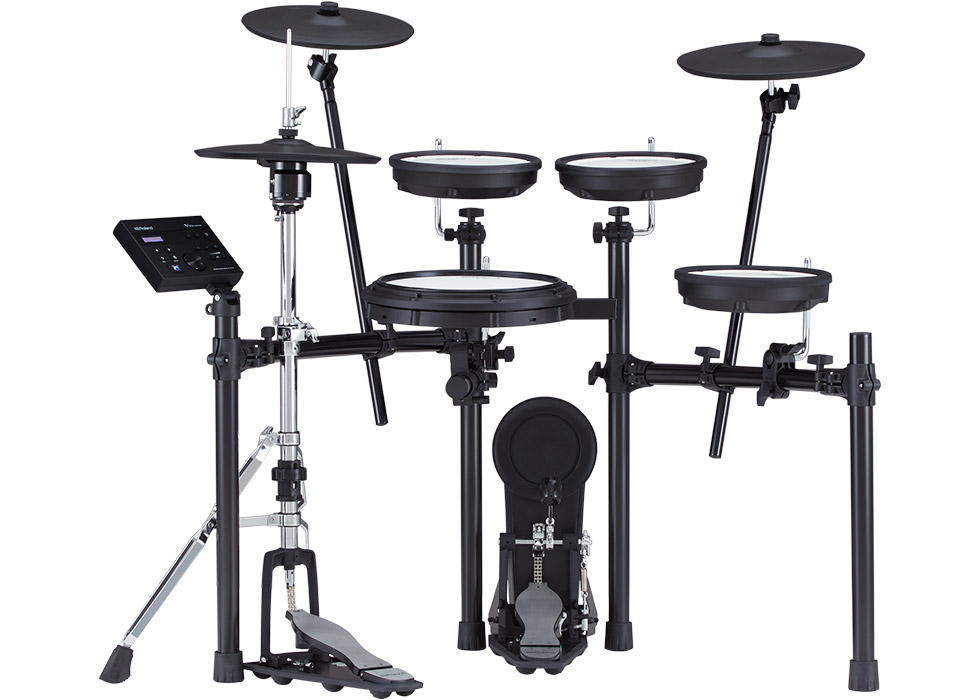

Roland TD-07KVX KIT

The Ultimate Model in the TD-07 Series, with VH-10 Floating Hi-Hat and Best-Ever Cymbals

The TD-07KVX is the pinnacle of Roland’s TD-07 V-Drums series, offering the ultimate complement of pads and cymbals to satisfy the most demanding drummers. This top-tier kit has the largest cymbal pads in the lineup, with a separately mounted VH-10 floating hi-hat, an uprated CY-12C crash, and a large 13-inch CY-13R ride that let you reach your true potential. You also get the PDX-12 snare and three PDX-8 toms, backed with the unrivaled feel of our original ultra-quiet, double-ply mesh heads. And, as with all TD-07 kits, the powerful TD-07 module lets the TD-07KVX eclipse traditional drums, with deep editing tools for crafting custom kits, Bluetooth® for audio playback from your phone, tablet, or computer, and one-cable USB connectivity to music recording software.

Specifications

Kit configuration (*1)

Kick: KD-10
Snare: PDX-12
Hi-hat: VH-10
Tom: PDX-8 x 3 *2
Crash: CY-12C-BK
Ride: CY-13R-BK
Drum stand: MDS-COMPACT x 1 (included in U.S. only)

Drum kits

50 (Preset: over 20)

Instruments

143

Effect Types

Pad Equalizer: each pad
Overhead Mic Simulator
Room
Multi-Effects: 1 system, 30 types

Coach functions (5 modes)

Time check (easy)
Time check (hard)
Quiet count
Auto up/down
Change-up

Metronome

Tempo (20--260)
Rhythm type (5 types)
Sounds (15 types)

Bluetooth

Supported standards: Bluetooth Ver 4.2
Supported profile: A2DP (Audio), GATT (MIDI over Bluetooth Low Energy)
Codec: SBC (Support to the content protection of the SCMS-T method)

Display

16 characters x 2 lines LCD (with backlight)

Connectors

OUTPUT/PHONES jack: Stereo miniature phone type
MIX IN jack: Stereo miniature phone type
USB COMPUTER port: USB B type
TRIGGER INPUT connector: DB-25 type (Kick, Snare, Tom 1, Tom 2, Tom 3, Hi-hat, Crash 1, Crash 2, Ride, Hi-hat control)

USB COMPUTER

Speed: Hi-speed USB
Driver mode: Generic, Vender
Protocol: USB MIDI, USB Audio *3

USB Audio

Sampling Rate (original): 44.1 kHz
Sampling Rate (with sampling rate converter): 96 kHz, 48 kHz
Record: 2 channels
Playback: 2 channels

Power supply

AC adaptor (DC 12 V)

Current draw

250 mA

Accessories

Setup Guide
Owner's Manual
Leaflet "USING THE UNIT SAFELY"
AC adaptor
Special connection cable

Options (sold separately)

Personal drum monitor: PM series
V-Drums accessory package: DAP-3X
V-Drums mat: TDM series
Noise eater: NE series

Size & Weight

Dimensions

1,300 (W) x 1,100 (D) x 1,200 (H) mm
51-3/16 (W) x 43-5/16 (D) x 47-1/4 (H) inches

(including sound module, kick pad, kick pedal and drum throne)

Weight

20.9 kg / 46 lbs 2 oz



*1 Kick pedal, hi-hat stand, and drum throne are not included.

*2 Rim-shot is not supported.

*3 In order to use USB audio, switch to vendor mode and use the vendor driver.
