Focusrite RedNet D16R MkII | 16 kanaler AES I/O med gain trim

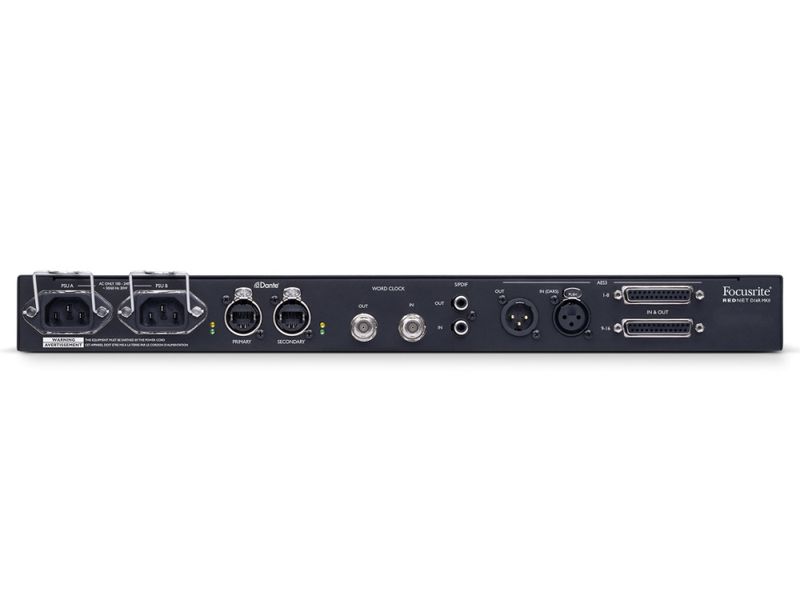

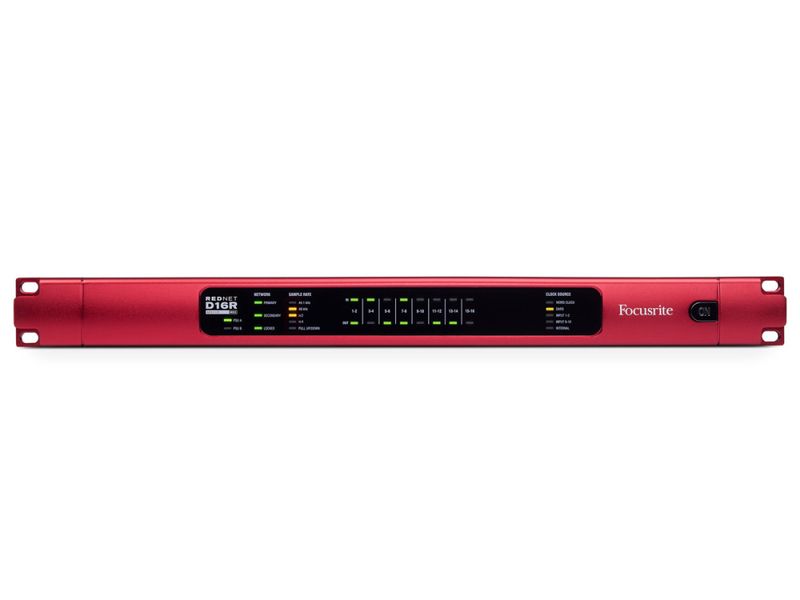

The RedNet D16R MkII is a 16-channel bi-directional AES3 interface for Dante® networks. The 1U rackmount device features individual input and output channel level controls, allowing for precise calibration and control of all input and output levels using RedNet Control. RedNet D16R MkII features power supply and Ethernet redundancy with auto switchover in case of failure.  Various connection options make RedNet D16R MkII a flexible addition to any Audio-over-IP system. A pair of DB25 multipin connectors each connect eight channels of AES3 I/O into and out of the interface, while XLR and RCA ports enable two-channel AES3 and S/PDIF connections, respectively, to be made. Features 16-channel bi-directional AES3 interface for Dante networks Individual input and output channel level control using RedNet Control software Power supply and Ethernet redundancy with auto switchover in case of failure Sample rate conversion on all input channels Two DB25 connectors with AES59 standard configuration; each carries eight channels of AES3 I/O RCA connectors for two-channel S/PDIF input and output XLR connectors for alternate AES3 I/O and DARS input BNC connectors for Word Clock input and output Remote routing and control using RedNet Control and Dante Controller Full operability with Focusrite RedNet and Red interfaces, plus all Dante devices from hundreds of manufacturers
